Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| id | BIGINT | 19 | √ | null |
|
|
||||||||||||||||||
| timecreated | BIGINT | 19 | null |
|
|
Time this record was created. |
||||||||||||||||||
| timemodified | BIGINT | 19 | null |
|
|
Time this record was modified. |
||||||||||||||||||
| usermodified | BIGINT | 19 | null |
|
|
The user who modified this record |
||||||||||||||||||
| name | VARCHAR | 255 |
|
|
The name of this identity issuer |
|||||||||||||||||||
| image | LONGTEXT | 2147483647 | null |
|
|
|||||||||||||||||||
| baseurl | LONGTEXT | 2147483647 | null |
|
|
The base url to the issuer |
||||||||||||||||||
| clientid | LONGTEXT | 2147483647 | null |
|
|
The client id used to connect to this oauth2 service. |
||||||||||||||||||
| clientsecret | LONGTEXT | 2147483647 | null |
|
|
The secret used to connect to this oauth2 service. |
||||||||||||||||||
| loginscopes | LONGTEXT | 2147483647 | null |
|
|
The scopes requested for a normal login attempt. |
||||||||||||||||||
| loginscopesoffline | LONGTEXT | 2147483647 | null |
|
|
The scopes requested for a login attempt to generate a refresh token. |
||||||||||||||||||
| loginparams | LONGTEXT | 2147483647 | null |
|
|
Additional parameters sent for a login attempt. |
||||||||||||||||||
| loginparamsoffline | LONGTEXT | 2147483647 | null |
|
|
Additional parameters sent for a login attempt to generate a refresh token. |
||||||||||||||||||
| alloweddomains | LONGTEXT | 2147483647 | null |
|
|
Allowed domains for this issuer. |
||||||||||||||||||
| scopessupported | LONGTEXT | 2147483647 | √ | null |
|
|
The list of scopes this service supports. |
|||||||||||||||||
| enabled | TINYINT | 3 | 1 |
|
|
|||||||||||||||||||
| showonloginpage | TINYINT | 3 | 1 |
|
|
|||||||||||||||||||
| basicauth | TINYINT | 3 | 0 |
|
|
Use HTTP Basic authentication scheme when sending client ID and password |
||||||||||||||||||
| sortorder | BIGINT | 19 | null |
|
|
The defined sort order. |
||||||||||||||||||
| requireconfirmation | TINYINT | 3 | 1 |
|
|
|||||||||||||||||||
| servicetype | VARCHAR | 255 | √ | null |
|
|
Issuer service type, such as ‘google’ or ‘facebook’. |
|||||||||||||||||
| loginpagename | VARCHAR | 255 | √ | null |
|
|
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| PRIMARY | Primary key | Asc | id |

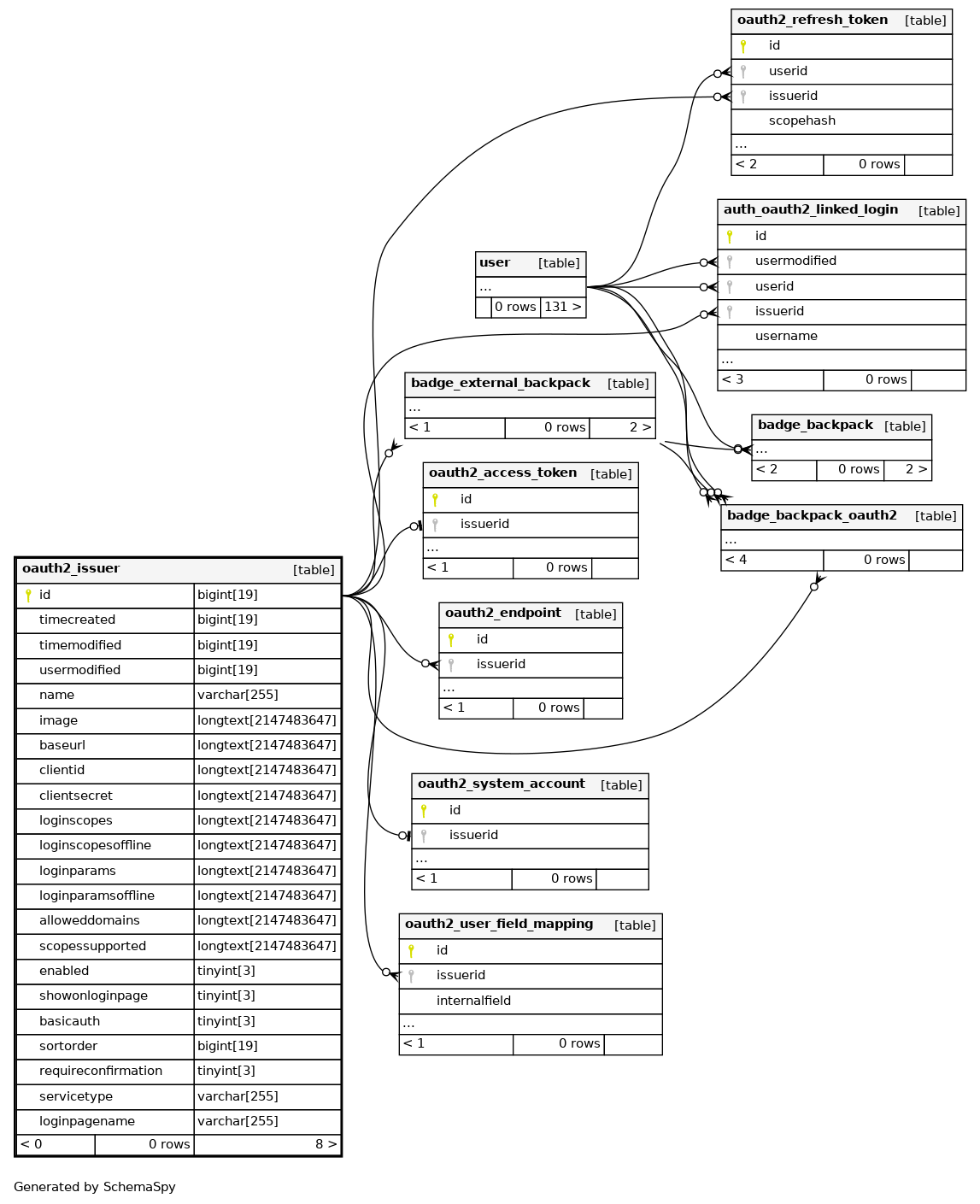

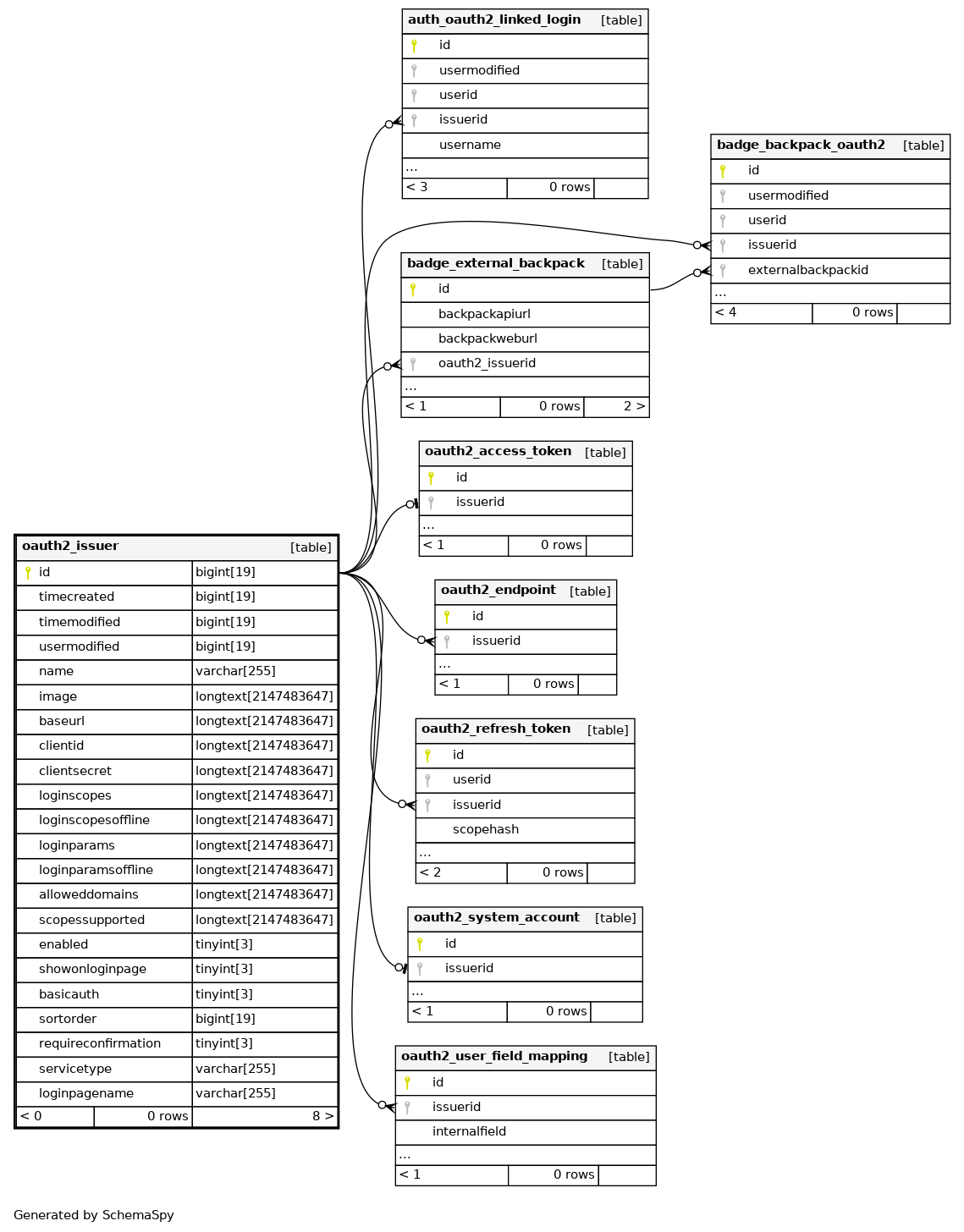

Relationships
Close relationships within degrees of separation
