Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments | ||
|---|---|---|---|---|---|---|---|---|---|---|
| id | BIGINT | 19 | √ | null |
|
|
||||
| instanceid | BIGINT | 19 | null |
|
|
The ID of the grading form instance |
||||
| criterionid | BIGINT | 19 | null |
|
|
The ID of the criterion (row) in the rubric |
||||
| levelid | BIGINT | 19 | √ | null |
|
|
If a particular level was selected during the assessment, its ID is stored here |
|||
| remark | LONGTEXT | 2147483647 | √ | null |
|
|
Side note feedback regarding this particular criterion |
|||
| remarkformat | TINYINT | 3 | √ | null |
|
|
The format of the remark field |
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| PRIMARY | Primary key | Asc | id |
| gradrubrfill_cri2_ix | Performance | Asc | criterionid |
| gradrubrfill_ins2_ix | Performance | Asc | instanceid |
| gradrubrfill_inscri2_uix | Must be unique | Asc/Asc | instanceid + criterionid |
| gradrubrfill_lev2_ix | Performance | Asc | levelid |

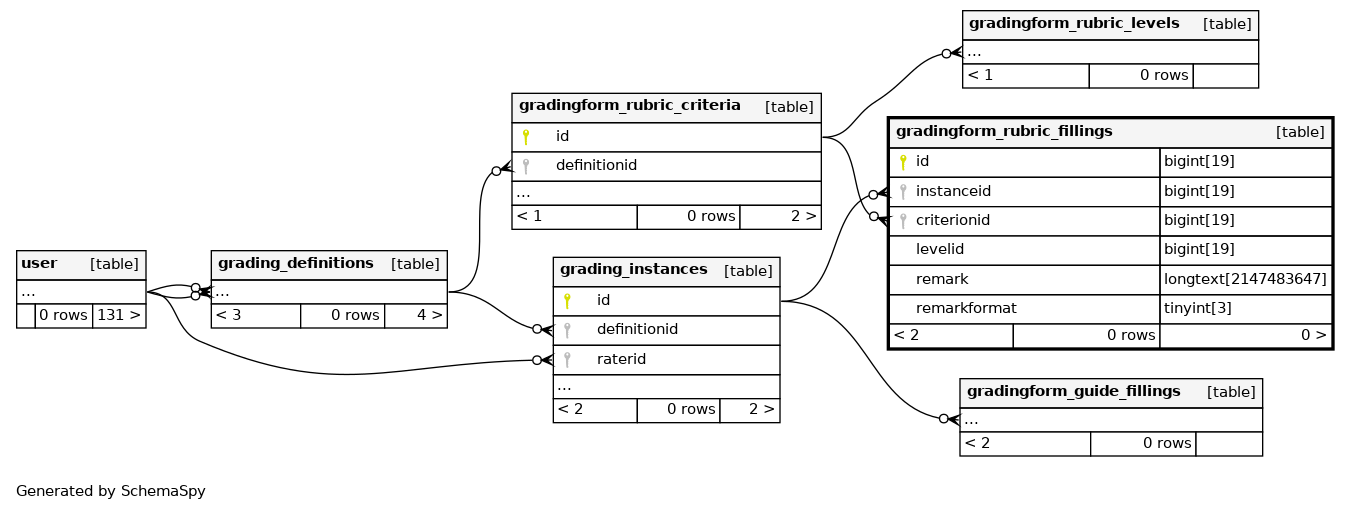

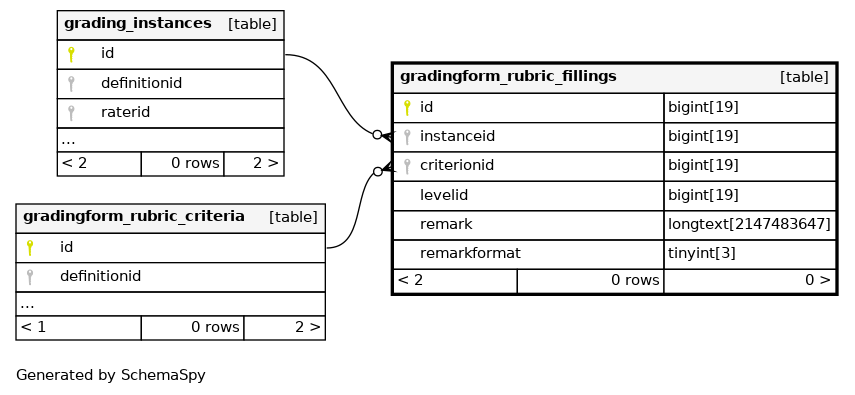

Relationships
Close relationships within degrees of separation
