Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments | ||
|---|---|---|---|---|---|---|---|---|---|---|
| id | BIGINT | 19 | √ | null |
|
|
||||
| blockinstanceid | BIGINT | 19 | null |
|
|
The block_instance this position relates to. |
||||
| contextid | BIGINT | 19 | null |
|
|
With pagetype and subpage, defines the page we are setting the position for. |
||||
| pagetype | VARCHAR | 64 |
|
|
With contextid and subpage, defines the page we are setting the position for. |
|||||
| subpage | VARCHAR | 16 |
|
|
With contextid and pagetype, defines the page we are setting the position for. |
|||||
| visible | SMALLINT | 5 | null |
|
|
Whether this block instance is visible on this page. |
||||
| region | VARCHAR | 16 |
|
|
Which block region on this page this block should appear in. |
|||||
| weight | BIGINT | 19 | null |
|
|
Used to order the blocks within a block region. |
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| PRIMARY | Primary key | Asc | id |
| blocposi_blo2_ix | Performance | Asc | blockinstanceid |
| blocposi_bloconpagsub2_uix | Must be unique | Asc/Asc/Asc/Asc | blockinstanceid + contextid + pagetype + subpage |
| blocposi_con2_ix | Performance | Asc | contextid |

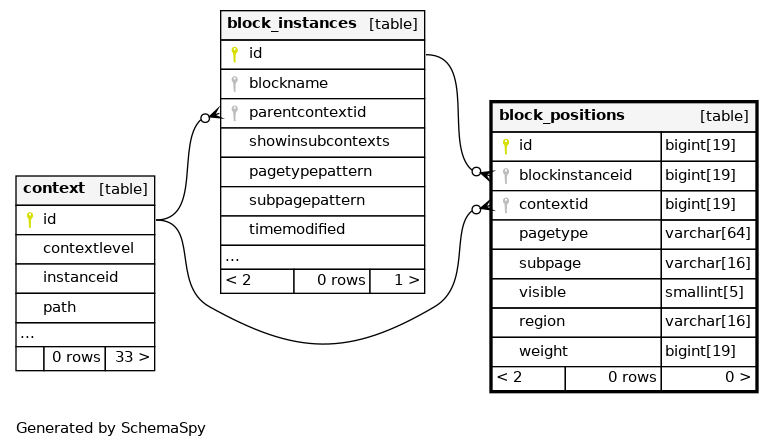

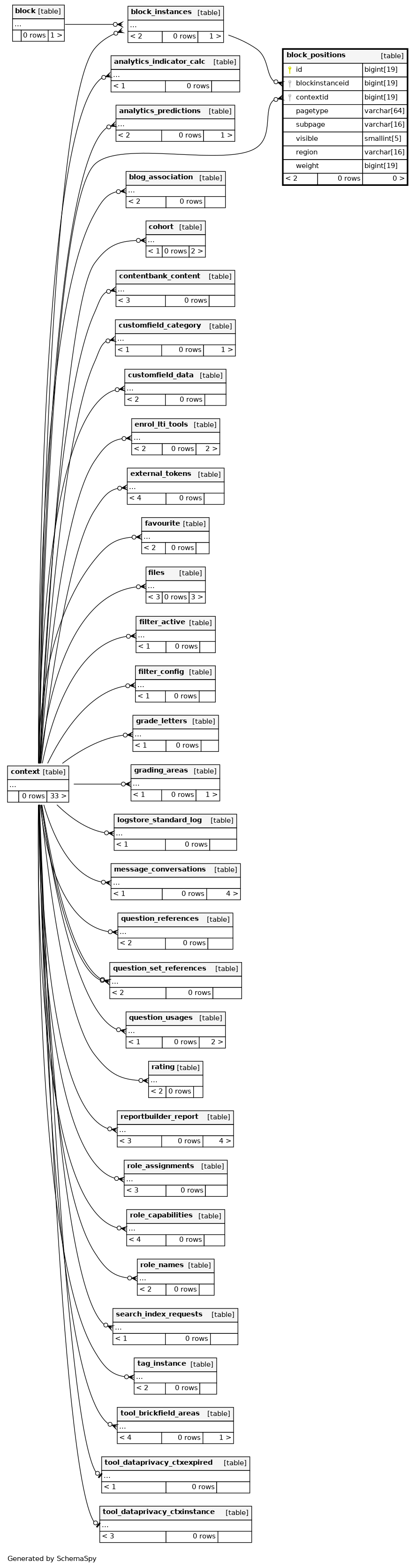

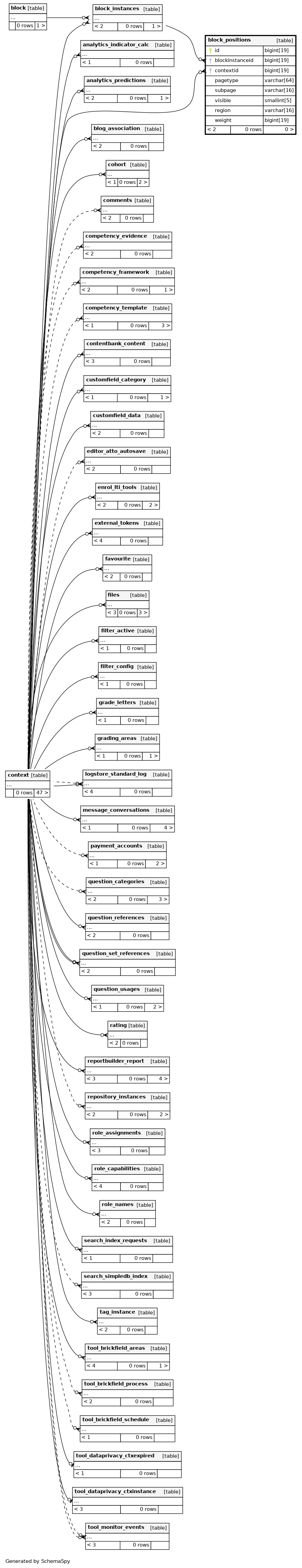

Relationships
Close relationships within degrees of separation
