Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments | ||
|---|---|---|---|---|---|---|---|---|---|---|
| id | BIGINT | 19 | √ | null |
|
|
||||
| userid | BIGINT | 19 | null |
|
|
User associated to the competency. |
||||
| competencyid | BIGINT | 19 | null |
|
|
Competency associated to the user. |
||||
| planid | BIGINT | 19 | null |
|
|
Plan associated to the user. |
||||
| proficiency | TINYINT | 3 | √ | null |
|
|
Indicate if the competency is proficient not. |
|||
| grade | BIGINT | 19 | √ | null |
|
|
Grade assigned to the competency. |
|||
| sortorder | BIGINT | 19 | √ | null |
|
|
Relative sort order |
|||
| timecreated | BIGINT | 19 | null |
|
|
|||||
| timemodified | BIGINT | 19 | √ | null |
|
|
||||
| usermodified | BIGINT | 19 | null |
|
|
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| PRIMARY | Primary key | Asc | id |
| competency_usercompplan_erd_competency | Performance | Asc | competencyid |
| compuser_usecompla2_uix | Must be unique | Asc/Asc/Asc | userid + competencyid + planid |
Relationships

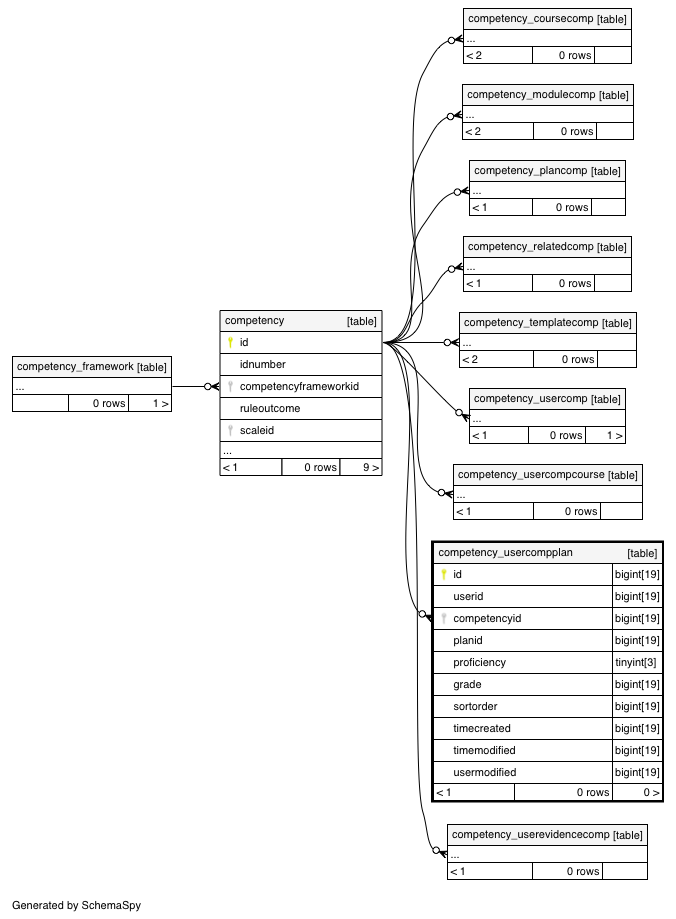

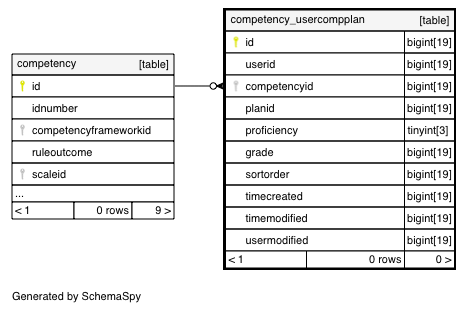

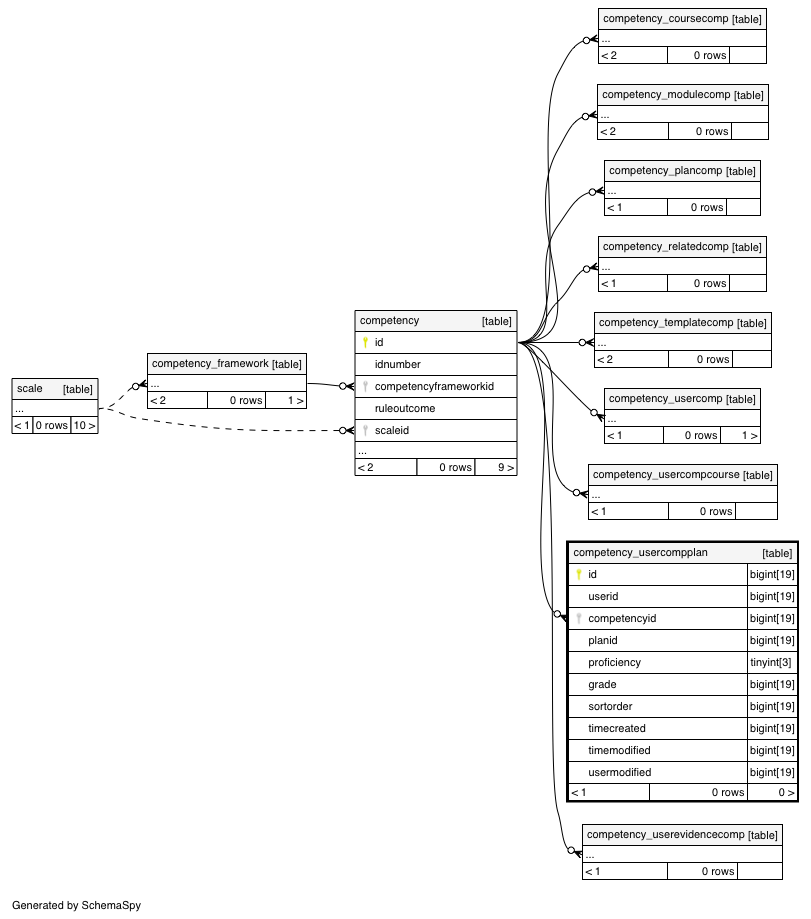

Close relationships within degrees of separation
